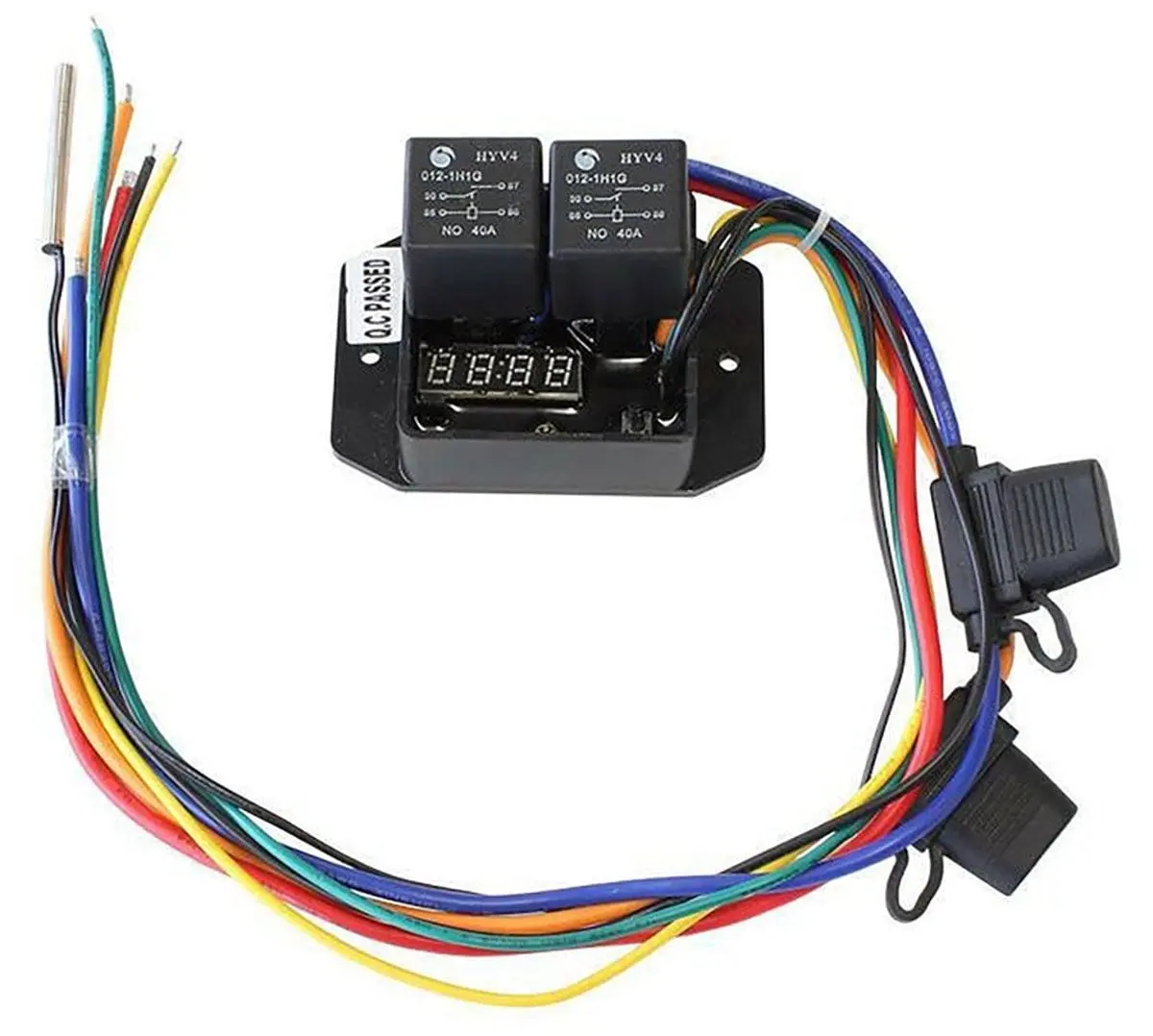

Dc0444 Digital Thermal Fan Control Switch For Radiator Cooling Systems

Description

Digital Thermatic Fan Switch

Use with electric thermo fans & Electric Water Pumps

DC0444

0444

Davies, Craig Pty Ltd very own designed Digital Thermatic Fan Switch Kit can be used with our Thermatic Fans, EWP’s & competitors Fans.It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF).The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses.This switch is operated thermally & also when the air conditioning is in operation.Simply set the temperature by pressing the set button.It can run 1 or two fans. The second fan (if applicable) will start 10 seconds after Fan #1 runs.The fans will operate until the air temperature is reduced by 1 degrees (C) from the set temperature.To convert temperature reading from Centigrade to Fahrenheit, simply remove the plastic cover from the Jumper Pins by hand located below the LED screen.SPECIFICATIONMax voltage: 15VMax current: 50ARelay setup: Dual relaySpeed: Single speed – 10 sec. delay to start up the second fanApplications: Suitable for single and dual fan applicationsTemperature Display: LED digital temp display – actual temp + set tempTemp Display: Centigrade+ FahrenheitTemp settings: 40°c to 110°c (104°F to 230°F)Temp setting: Push ButtonCircuit type: Pre-programmed micro controllerOutput wires: Batt + Batt – IGN, AC Clutch, Fan #1, Fan #2 Thermistor ProbeDimensions: 95x65x56 mm
